150M3 Corrugated Galvanized Bolted Steel Water Tanks

  • 1
  • 2

Brand Name : Purescience

Model Number : D274H462

Certification : ISO9001/SGS

Place of Origin : China

MOQ : 2

Payment Terms : L/C, T/T, D/P

Supply Ability : 1000 sets per monthy

Delivery Time : 2-3 weeks

Packaging Details : carton

Tank Dia : 2740mm

Operate Pressure : < 0.3 Mpa

Tank Height : 4620 mm

Capacity : 9 - 27 m3

Inlet/outlet : accessories included

Drainage port : yes

Liner material : PVC/TPU/Canvas

Contact Now

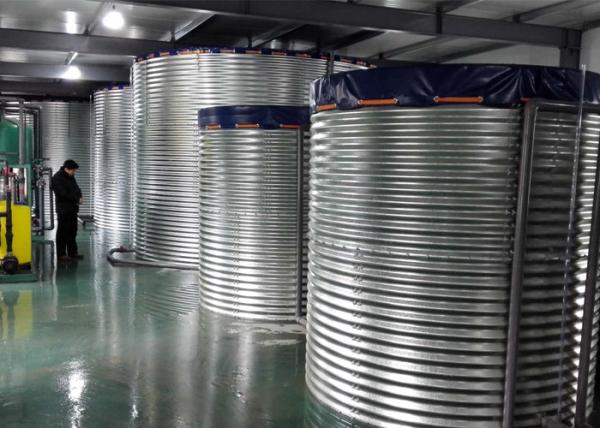

corrugated galvanized steel water tanks 150 m3, bolted steel fish farm tanks

General Description

Our steel bolt tanks are made by the hot dip galvanized steel panels and can be used in a variety of applications, including drinking water storage, fire fighting, wastewater storage, fish farms, and aquaculture.

Specification

Tank body material corrugated galvanized steel
Diameter range 3 - 40 m, or customized
Capacity 4 - 2200 cbm
Fastners bolts & nuts, column strengthen
Liner PVC/TPU tarpulin/canvas


150M3 Corrugated Galvanized Bolted Steel Water Tanks

Specifications:

Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity
(m) (m) (m3) (m) (m) (m3) (m) (m) (m3) (m) (m) (m3)
1.86 1.52 4.1 8.24 1.52 81 14.64 1.52 255 21.96 1.52 575
2.31 6.2 2.31 123 2.31 388 2.31 874
3.08 8.3 3.08 164 3.08 518 3.08 1165
3.85 10.3 3.85 205 3.85 647 3.85 1457
4.62 12.4 4.62 246 4.62 777 22.88 1.52 624
2.74 1.52 9 9.15 1.52 100 15.56 1.52 288 2.31 949
2.31 13 2.31 151 2.31 438 3.08 1265
3.08 18 3.08 201 3.08 585 3.85 1582
3.85 22 3.85 252 3.85 731 23.79 1.52 674
4.62 27 4.62 302 4.62 877 2.31 1025
3.66 1.52 16 10.06 1.52 120 17.39 1.52 360 3.08 1367
2.31 24 2.31 183 2.31 547 3.85 1711
3.08 32 3.08 244 3.08 730 24.71 1.52 727
3.85 40 3.85 305 3.85 912 2.31 1106
4.62 48 4.62 367 4.62 1096 3.08 1475
4.57 1.52 25 10.98 1.52 143 18.3 1.52 399 3.85 1846
2.31 37 2.31 218 2.31 607 25.62 1.52 783
3.08 50 3.08 291 3.08 809 2.31 1190
3.85 62 3.85 364 3.85 1012 3.08 1475
4.62 75 4.62 437 4.62 1214 3.85 1846
5.49 1.52 36 11.9 1.52 168 19.22 1.52 440 26.54 1.52 840
2.31 54 2.31 256 2.31 669 2.31 1277
3.08 77 3.08 342 3.08 893 3.08 1702
3.85 90 3.85 427 3.85 1116 27.45 1.52 898
4.62 108 4.62 513 4.62 1339 2.31 1365
6.4 1.52 49 12.81 1.52 195 20.13 1.52 482 3.08 1820
2.31 74 2.31 297 2.31 734 28.37 1.52 959
3.08 99 3.08 396 3.08 978 2.31 1458
3.85 123 3.85 495 3.85 1223 3.08 1944
4.62 148 4.62 596 4.62 1470 29.28 1.52 1022
7.32 1.52 64 13.72 1.52 224 21.05 1.52 528 2.31 1554
2.31 97 2.31 341 2.31 802 3.08 2072
3.08 129 3.08 455 3.08 1070 30.2 1.52 1088
3.85 161 3.85 568 3.85 1337 2.31 1653
4.62 194 4.62 682 4.62 1608 3.08 2205
