2200M3 PVC Liner Fish Farm Plastic Aquaculture Tanks

Product Categories
Shanghai Xunhui Environment Technology Co., Ltd.
Contact Now

2200M3 PVC Liner Fish Farm Plastic Aquaculture Tanks

  • 1
  • 2

Brand Name : Purescience

Model Number : D640H152

Certification : ISO9001/SGS

Place of Origin : China

MOQ : 2

Payment Terms : L/C, T/T, D/P

Supply Ability : 1000 sets per monthy

Delivery Time : 2-3 weeks

Packaging Details : carton

Tank Dia : 6400 mm

Operate Pressure : < 0.3 Mpa

Tank Height : 1520 mm

Capacity : 49 - 148 m3

Inlet/outlet : accessories included

Drainage port : yes

Liner material : PVC/TPU/Canvas

Contact Now

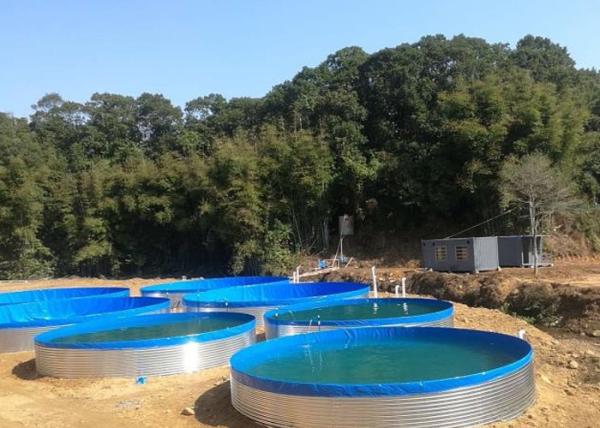

Plastic aquaculture tanks for fish farm, water storage, capacity: 4-2200 m3, PVC liner

General Description

A wide range of performance materials is available to meet a wide range of customer needs The fully customized length, width, and height are suitable for places with high space requirements, such as in-vehicle transportation, and the car is custom-made for all types of vehicles. It has the advantages of anti-vibration, anti-UV, good sealing, anti-corrosion, long service life, and convenience. The Foldable Home Farm Garden Use Flexible Water Tank Water Bladder is a self-supporting water tank that automatically stands when infused with water and does not require human intervention.


Specification

Tank body material corrugated galvanized steel
Diameter range 3 - 40 m, or customized
Capacity 4 - 2200 cbm
Fastners bolts & nuts, column strengthen
Liner PVC/TPU tarpulin/canvas


2200M3 PVC Liner Fish Farm Plastic Aquaculture Tanks

Specifications:

Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity
(m) (m) (m3) (m) (m) (m3) (m) (m) (m3) (m) (m) (m3)
1.86 1.52 4.1 8.24 1.52 81 14.64 1.52 255 21.96 1.52 575
2.31 6.2 2.31 123 2.31 388 2.31 874
3.08 8.3 3.08 164 3.08 518 3.08 1165
3.85 10.3 3.85 205 3.85 647 3.85 1457
4.62 12.4 4.62 246 4.62 777 22.88 1.52 624
2.74 1.52 9 9.15 1.52 100 15.56 1.52 288 2.31 949
2.31 13 2.31 151 2.31 438 3.08 1265
3.08 18 3.08 201 3.08 585 3.85 1582
3.85 22 3.85 252 3.85 731 23.79 1.52 674
4.62 27 4.62 302 4.62 877 2.31 1025
3.66 1.52 16 10.06 1.52 120 17.39 1.52 360 3.08 1367
2.31 24 2.31 183 2.31 547 3.85 1711
3.08 32 3.08 244 3.08 730 24.71 1.52 727
3.85 40 3.85 305 3.85 912 2.31 1106
4.62 48 4.62 367 4.62 1096 3.08 1475
4.57 1.52 25 10.98 1.52 143 18.3 1.52 399 3.85 1846
2.31 37 2.31 218 2.31 607 25.62 1.52 783
3.08 50 3.08 291 3.08 809 2.31 1190
3.85 62 3.85 364 3.85 1012 3.08 1475
4.62 75 4.62 437 4.62 1214 3.85 1846
5.49 1.52 36 11.9 1.52 168 19.22 1.52 440 26.54 1.52 840
2.31 54 2.31 256 2.31 669 2.31 1277
3.08 77 3.08 342 3.08 893 3.08 1702
3.85 90 3.85 427 3.85 1116 27.45 1.52 898
4.62 108 4.62 513 4.62 1339 2.31 1365
6.4 1.52 49 12.81 1.52 195 20.13 1.52 482 3.08 1820
2.31 74 2.31 297 2.31 734 28.37 1.52 959
3.08 99 3.08 396 3.08 978 2.31 1458
3.85 123 3.85 495 3.85 1223 3.08 1944
4.62 148 4.62 596 4.62 1470 29.28 1.52 1022
7.32 1.52 64 13.72 1.52 Product Tags:
