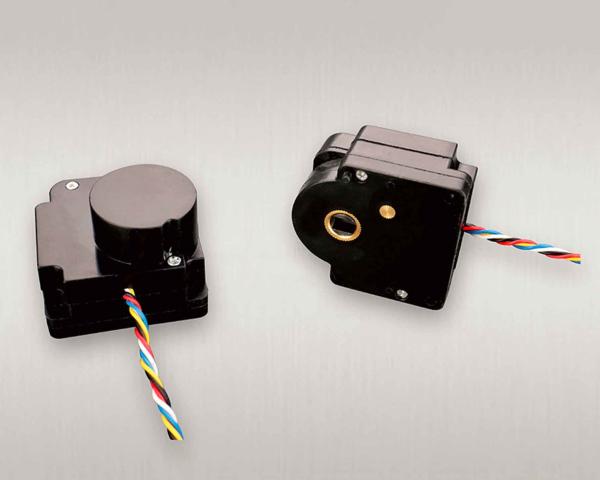

Torque 1.8NM AMR Water Meter DC5V Electric Valve Actuator

  • 1
  • 2

Brand Name : Lekin

Model Number : K07

Certification : ISO9001/SGS

Place of Origin : Hangzhou,China

MOQ : 1000 pieces

Payment Terms : T/T, L/C

Supply Ability : 200000 sets/month

Delivery Time : 20 working days

Packaging Details : carton

Type : DC valve actuator

Power : DC 3.6 V

Current at empty run : 25 mA at 3.6V, 23 C

Current at working : 550 mA (motor #300)

Torque : 1.8NM

Open / close time : 8 s

V reduction ratio : 1500:1 for DN15-20mm

Contact Now

Mini Motorized Brass Ball Valve, DC5V Electric Valve Actuator For AMR Water Meter/Prepay Heat Meter

A motorized ball valve is the ball valve that use an electric actuator to open or close its mechanism,this type of valve is ideally suited to remote automatic flow control applications,such as smart home system,industrial water treatment,irrigation,water filters & filtration system,pharmacy,Chemical,Oil application,Fire fighting system,Food process,Electric brewings,water leak detection system,etc.the valve is mainly used for water,if other flow medium,we recommend you trying sample first and see how it works in your application.

Model K02 Technical data
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idling: <25 mA @ 3.6V, 23ºC
3. Current with loading: <550 mA (motor #300)
4. Torque: >1.8 NM (1500:1)
5. Open/close time: <8 S
6. Velocity reduction ratio: 1500:1 (DN15/20mm)
7. Protection: 0

Wiring diagram

Wire color Description
Blue signal of switch on position, open valve
White signal of public terminal
Yellow signal of switch off position, close valve
Red power terminal, + positive
Black power terminal, - negative


Our advantage

-24 hours technical support

-Fastest shipping time

-Perfect quality

-Customized service for many applications

Factory overview
-Production facilities

Torque 1.8NM AMR Water Meter DC5V Electric Valve Actuator Torque 1.8NM AMR Water Meter DC5V Electric Valve Actuator Torque 1.8NM AMR Water Meter DC5V Electric Valve Actuator
