Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks

Product Categories
Shanghai Xunhui Environment Technology Co., Ltd.
Contact Now

Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks

  • 1
  • 2

Brand Name : Purescience

Model Number : D274H462

Certification : ISO9001/SGS

Place of Origin : China

MOQ : 2

Payment Terms : L/C, T/T, D/P

Supply Ability : 1000 sets per monthy

Delivery Time : 2-3 weeks

Packaging Details : carton

Tank Dia : 2740mm

Operate Pressure : < 0.3 Mpa

Tank Height : 4620 mm

Capacity : 9 - 27 m3

Inlet/outlet : accessories included

Drainage port : yes

Liner material : PVC/TPU/Canvas

Contact Now

Hot Dip Galvanized Water Tank fire systems by steel bolted tanks with pVC Liner

General Description

The aquarium solution uses a steel bolt tank and is prefabricated with arc-shaped steel plates, bolts and nuts. We provide a variety of performance materials to meet the needs of different customers. The flexible water tank used in the garden of foldable family farm is a kind of self-supporting water tank, which can stand automatically after filling water, without manual intervention. The fully customized length, width and height are suitable for places with high space requirements, such as vehicle transportation, and the vehicle is tailored for all types of vehicles. It has the advantages of shockproof, anti ultraviolet, good sealing, anti-corrosion, long service life and convenient use.

Specification

Tank body material corrugated galvanized steel
Diameter range 3 - 40 m, or customized
Capacity 4 - 2200 cbm
Fastners bolts & nuts, column strengthen
Liner PVC/TPU tarpulin/canvas


Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks

Specifications:

Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity Tank dia Height Capacity
(m) (m) (m3) (m) (m) (m3) (m) (m) (m3) (m) (m) (m3)
1.86 1.52 4.1 8.24 1.52 81 14.64 1.52 255 21.96 1.52 575
2.31 6.2 2.31 123 2.31 388 2.31 874
3.08 8.3 3.08 164 3.08 518 3.08 1165
3.85 10.3 3.85 205 3.85 647 3.85 1457
4.62 12.4 4.62 246 4.62 777 22.88 1.52 624
2.74 1.52 9 9.15 1.52 100 15.56 1.52 288 2.31 949
2.31 13 2.31 151 2.31 438 3.08 1265
3.08 18 3.08 201 3.08 585 3.85 1582
3.85 22 3.85 252 3.85 731 23.79 1.52 674
4.62 27 4.62 302 4.62 877 2.31 1025
3.66 1.52 16 10.06 1.52 120 17.39 1.52 360 3.08 1367
2.31 24 2.31 183 2.31 547 3.85 1711
3.08 32 3.08 244 3.08 730 24.71 1.52 727
3.85 40 3.85 305 3.85 912 2.31 1106
4.62 48 4.62 367 4.62 1096 3.08 1475
4.57 1.52 25 10.98 1.52 143 18.3 1.52 399 3.85 1846
2.31 37 2.31 218 2.31 607 25.62 1.52 783
3.08 50 3.08 291 3.08 809 2.31 1190
3.85 62 3.85 364 3.85 1012 3.08 1475
4.62 75 4.62 437 4.62 1214 3.85 1846
5.49 1.52 36 11.9 1.52 168 19.22 1.52 440 26.54 1.52 840
2.31 54 2.31 256 2.31 669 2.31 1277
3.08 77 3.08 342 3.08 893 3.08 1702
3.85 90 3.85 427 3.85 1116 27.45 1.52 898
4.62 108 4.62 513 4.62 1339 2.31 1365
6.4 1.52 49 12.81 1.52 195 20.13 1.52 482 3.08 1820
2.31 74 2.31 297 2.31 734 28.37 1.52 959
3.08 99 3.08 396 3.08 978 2.31 1458
3.85 123 3.85 495 3.85 1223 3.08 1944
4.62 148 4.62 596 4.62 1470 29.28 1.52 1022
7.32 1.52 64 13.72 1.52 224 21.05 1.52 528 2.31 1554
2.31 97 2.31 341 2.31 802 3.08 2072
3.08 129 3.08 455 3.08 1070 30.2 1.52 1088
3.85 161 3.85 568 3.85 1337 2.31 1653
4.62 194 4.62 682 4.62 1608 3.08 2205

About us

We use safe materials, excellent design and competitive prices to manufacture flexible fish tanks for fish farming (aquaculture), fish farming, rainwater collection, emergency water supply, corn storage, etc.

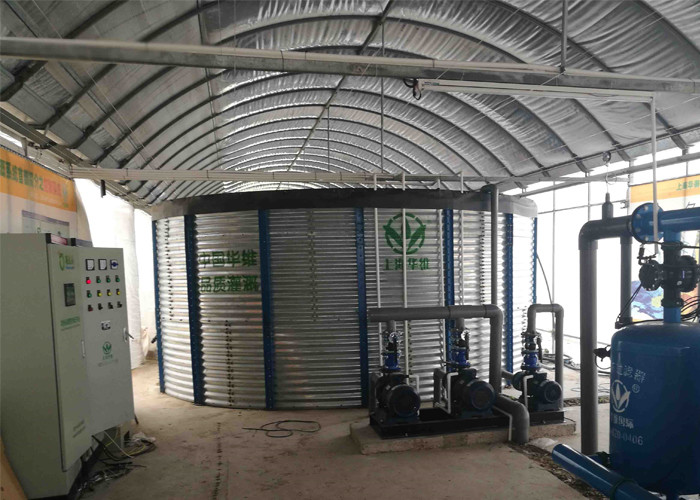

Photos of project

Anti Corrosion PVC Liner 2740mm Steel Bolted Tanks
